C100 Series

Log In to Order

  • The "C"

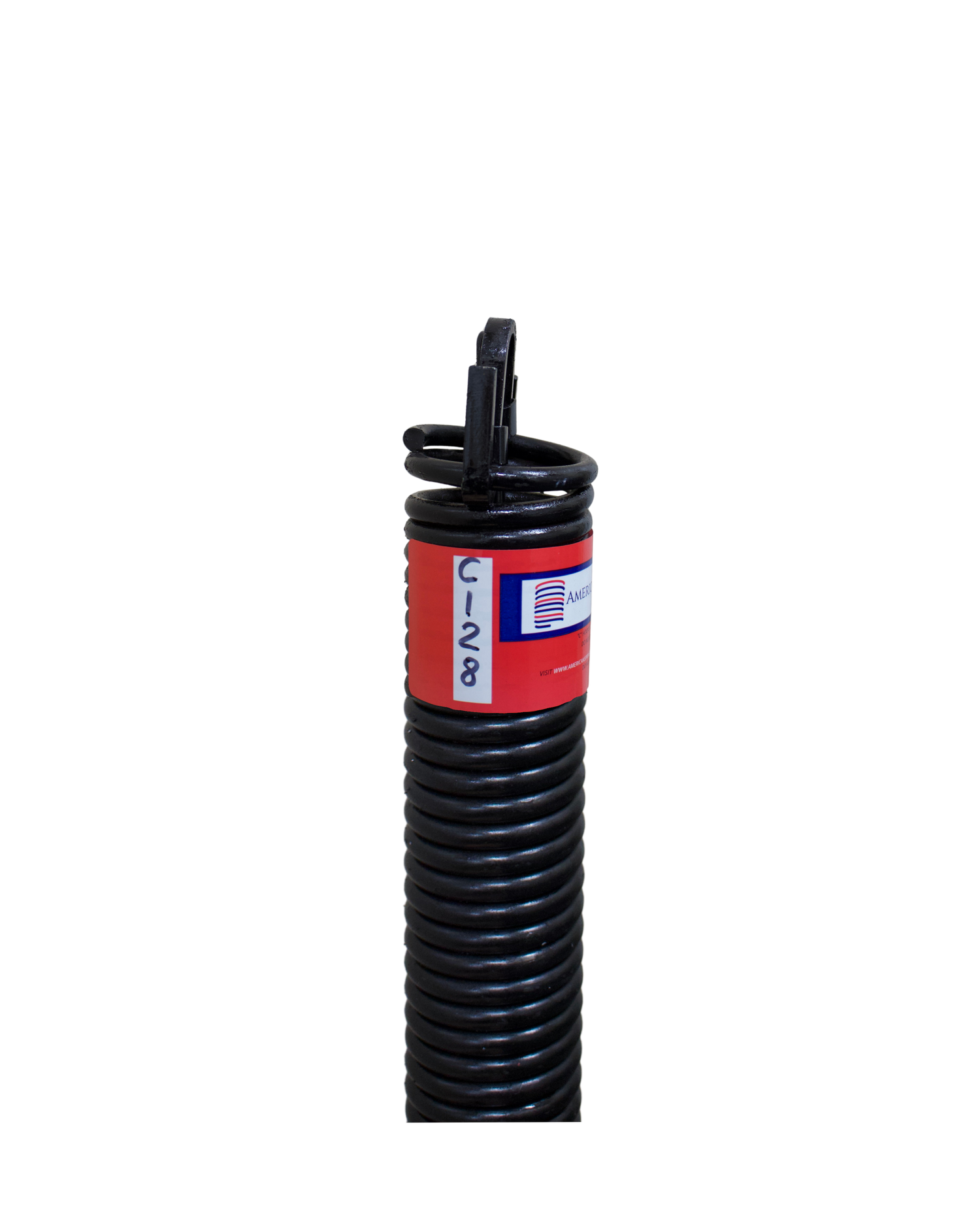

    The “C” in the part number stands for Clip-End, which refers to the style of the spring’s end. You’ll see this type of end in the product photo.

  • The "1"

    The first number after the "C", in this case, 1, refers to the gauge of the wire.

  • The Last 2 Numbers

    The last two numbers in the spring code (like “28” or “42”) tell you the length of the spring, measured in inches. So if you see “28,” that means the spring is 28 inches long, not including the end.
Our In-Depth Manufacturing Process

Spring Weight

C128 = 12.9 LBS

C130 = 13.9 LBS

C132 = 14.6 LBS

C136 = 16.3 LBS

C142 = 18.9 LBS

Spring Length

The length has nothing to do with the weight of the door, but everything to do with the height of the door.

C128 = 7'0" High

C130 = 7'6" High

C132 = 8'0" High

C136 = 9'0" High

C142 = 10'0" or Higher

Initial Tension

The initial tension is determined by how many pounds of pull force it takes to stretch the spring 1 inch.

All of our C100 Series springs, lengths 28-42 have an intial tension of 213-237 pounds.

Wire Type

All of our springs are composed of ASTM (American Society for Testing and Materials) 229 oil-tempered wire.

This specific one-piece extension spring uses 1 gauge wire which refers to the thickness of the wire.

Compatible Hooks

The style of hook is dependent on the amount of springs being used.

For 1 spring, C-Hooks will be used.

For 2 springs, W-Hooks will be used.
